Kia EV6: Driver assistance system / Overview

Kia EV6 2022-2026 Owner's Manual / Driver assistance system / Overview

Contents:

Detecting sensor(s)

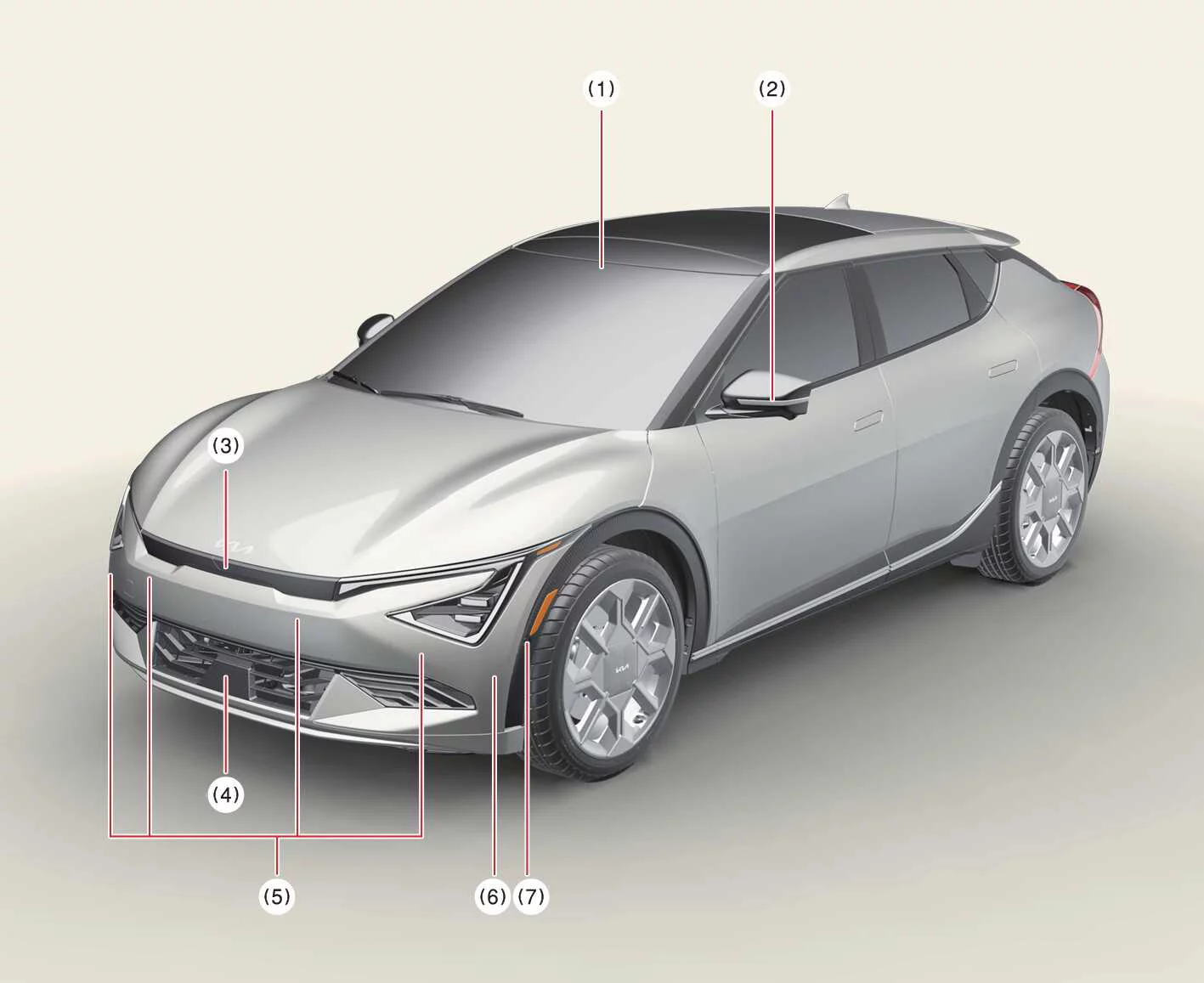

Figure 1. Front view
Kia EV6 front sensor layout showing cameras radar and ultrasonic driver assistance sensors

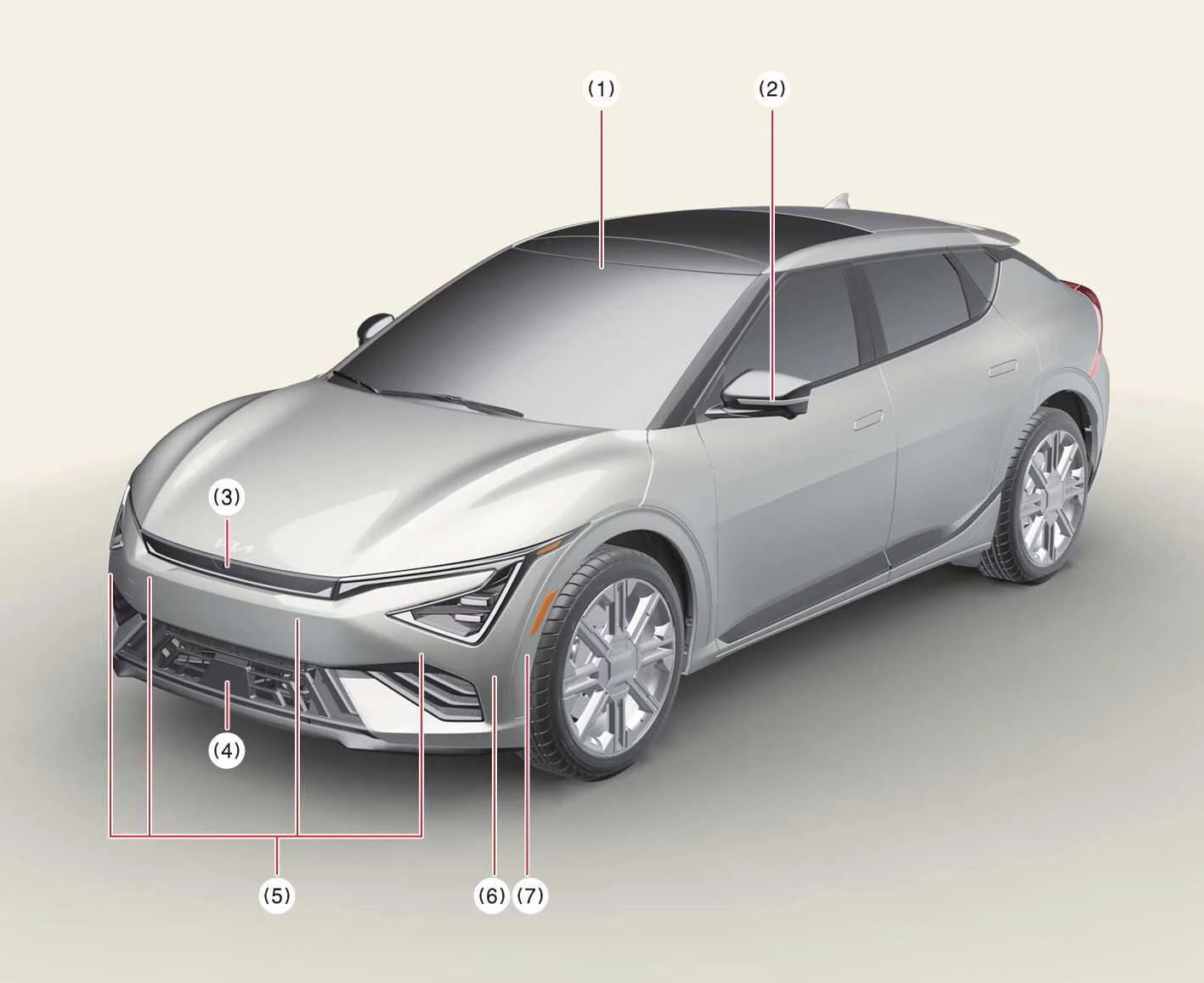

Figure 2. GT-Line Front view
Kia EV6 GT-Line front sensor system with advanced driver assistance components

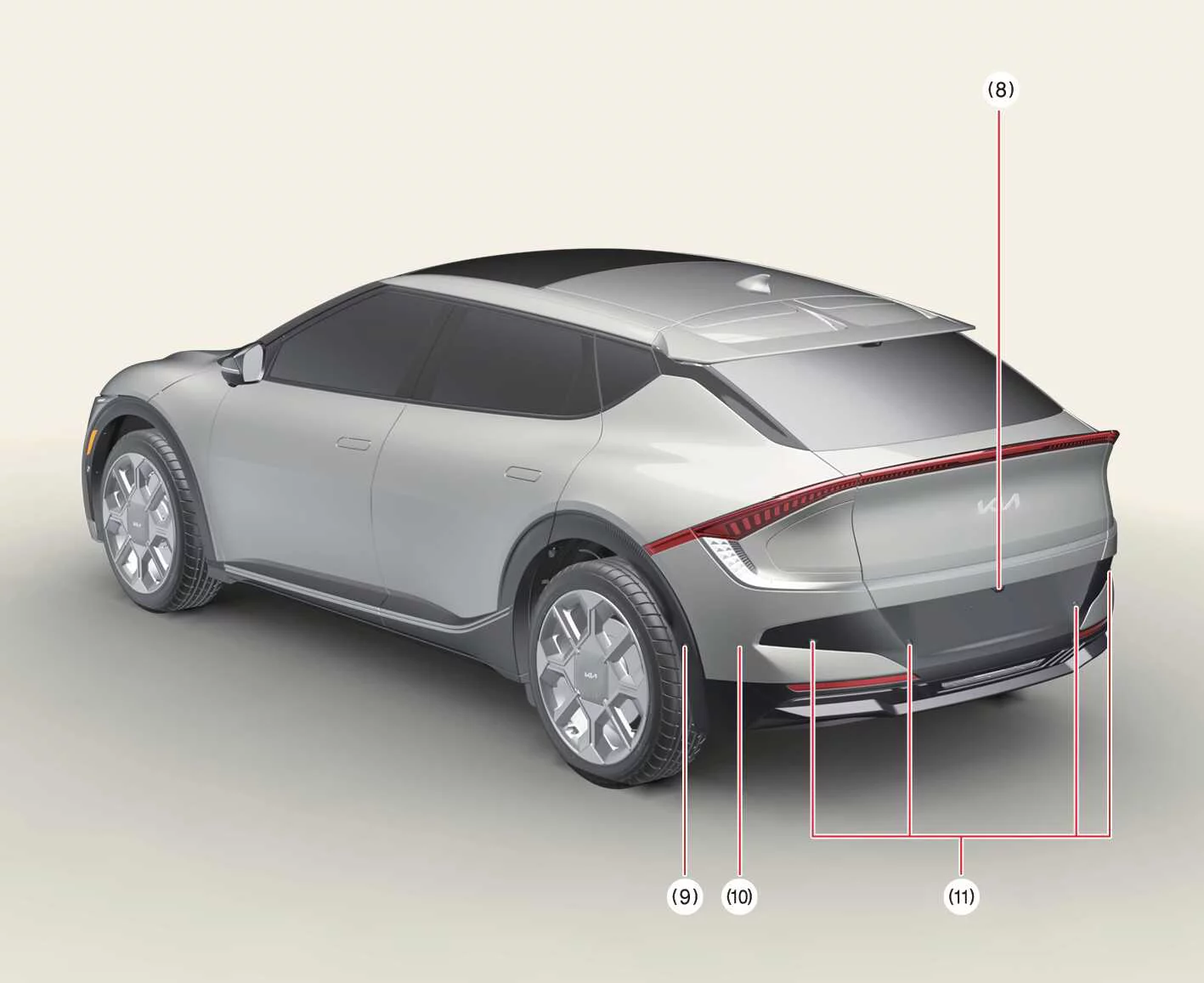

Figure 3. Rear view
Kia EV6 rear driver assistance sensor locations including radar cameras and ultrasonic sensors

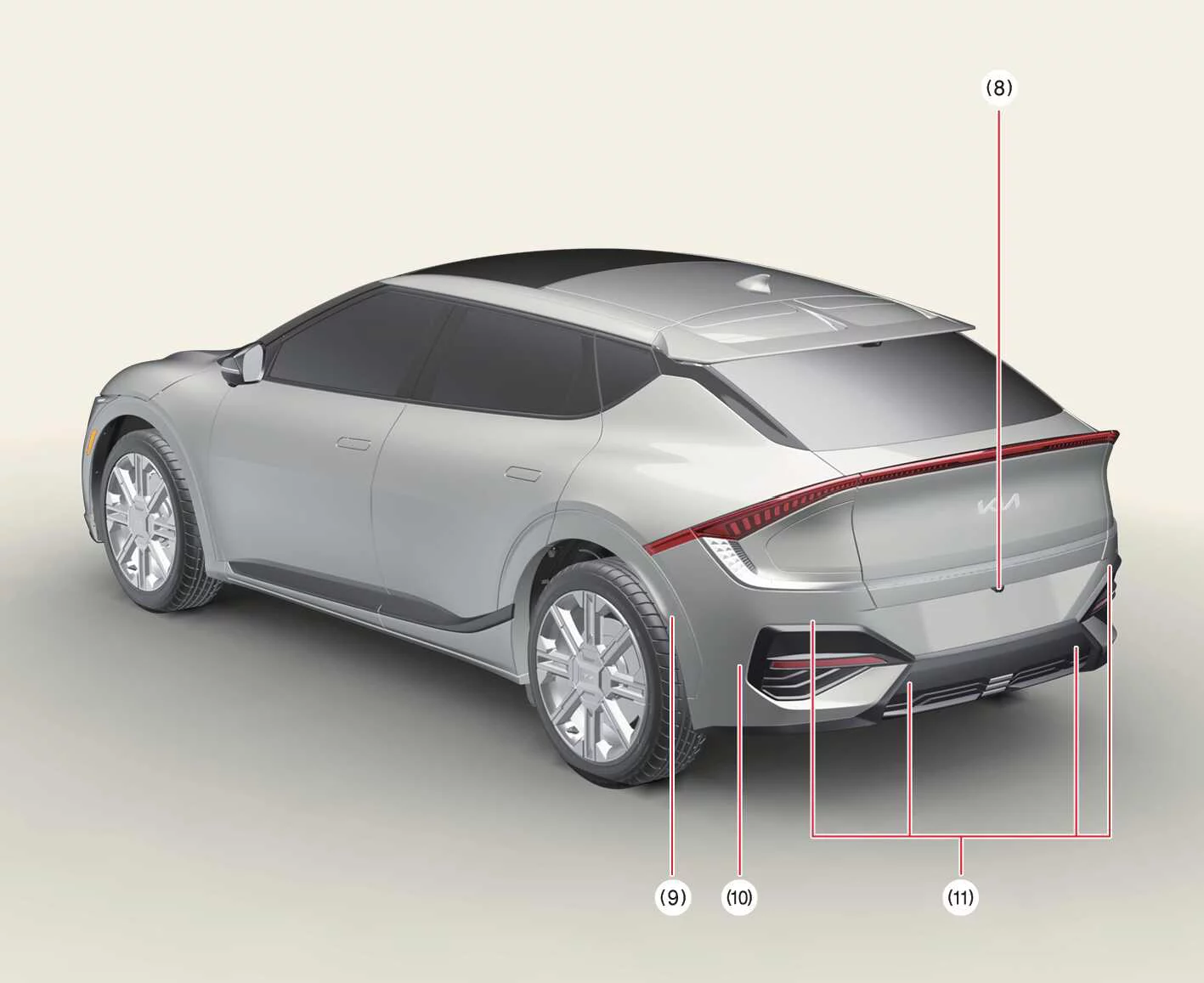

Figure 4. GT-Line Rear view
Kia EV6 GT-Line rear sensor layout for parking safety and highway driving assistance

Refer to the illustrations above for the detailed locations of the Kia EV6 detecting sensors and driver assistance components.

*: if equipped

No

Sensor

Function

(1)

Front view camera

  • High Beam Assist (HBA)*

  • Forward Collision-Avoidance Assist (FCA) (Sensor Fusion)

  • Lane Keeping Assist (LKA)

  • Intelligent Speed Limit Assist (ISLA)*

  • Driver Attention Warning (DAW)

  • Smart Cruise Control (SCC)

  • Lane Following Assist (LFA)

  • Highway Driving Assist (HDA)

The front camera system in the Kia EV6 continuously monitors lane markings, surrounding traffic, speed limit signs, and road conditions to support multiple advanced safety technologies.

(2)

Wide-side view camera*

  • Blind-Spot View Monitor (BVM)*

  • Surround View Monitor (SVM)*

  • Foward/Side/Reverse Parking Collision-Avoidance Assist (PCA)*

  • Remote Smart Parking Assist 2 (RSPA 2)*

The Kia EV6 side-view cameras help improve visibility around the vehicle during parking maneuvers, lane changes, and low-speed driving situations.

(3)

Wide-front view camera*

  • Surround View Monitor (SVM)*

  • Foward/Side/Reverse Parking Collision-Avoidance Assist (PCA)*

  • Remote Smart Parking Assist 2 (RSPA 2)*

The wide-front camera provides expanded forward visibility for the Kia EV6, helping improve parking accuracy and obstacle detection.

(4)

Front radar

  • Forward Collision-Avoidance Assist (FCA) (Sensor Fusion)

  • Smart Cruise Control (SCC)

  • Highway Driving Assist (HDA)*

The front radar system in the Kia EV6 measures the speed and distance of vehicles ahead to support collision avoidance and adaptive cruise functions.

(5)

Front ultrasonic sensors

  • Parking Distance Warning (PDW)*

  • Foward/Side/Reverse Parking Collision-Avoidance Assist (PCA)*

  • Remote Smart Parking Assist 2 (RSPA 2)*

The Kia EV6 front ultrasonic sensors help detect nearby objects during parking and low-speed maneuvering.

(6)

Front corner radar*

  • Forward Collision-Avoidance Assist (FCA) (Sensor Fusion)

  • Smart Cruise Control (SCC)

  • Highway Driving Assist (HDA)*

The Kia EV6 front corner radar sensors improve detection of cross traffic and surrounding vehicles at intersections and during lane changes.

(7)

Front side ultrasonic sensors*

  • Parking Distance Warning (PDW)*

  • Foward/Side/Reverse Parking Collision-Avoidance Assist (PCA)*

  • Remote Smart Parking Assist 2 (RSPA 2)*

The side ultrasonic sensors assist the Kia EV6 during tight parking situations by detecting nearby objects around the vehicle body.

(8)

Wide Rear View camera

  • Rear View Monitor (RVM)*

  • Surround View Monitor (SVM)*

  • Foward/Side/Reverse Parking Collision-Avoidance Assist (PCA)*

  • Remote Smart Parking Assist 2 (RSPA 2)*

The Kia EV6 rear camera system provides a wide-angle rearward view for improved reversing visibility and parking safety.

(9)

Rear side ultrasonic sensors*

  • Parking Distance Warning (PDW)*

  • Foward/Side/Reverse Parking Collision-Avoidance Assist (PCA)*

  • Remote Smart Parking Assist 2 (RSPA 2)*

The Kia EV6 rear-side ultrasonic sensors help identify nearby obstacles while reversing or parallel parking.

(10)

Rear corner radar

  • Forward Collision-Avoidance Assist (FCA) (Sensor Fusion)

  • Blind-Spot Collision-Avoidance Assist (BCA)*

  • Safe Exit Warning (SEW)*

  • Highway Driving Assist (HDA)*

  • Rear Cross-Traffic Collision-Avoidance Assist (RCCA)*

The Kia EV6 rear corner radar monitors approaching traffic and vehicles located in blind-spot areas to improve overall driving safety.

(11)

Rear ultrasonic sensors

  • Parking Distance Warning (PDW)*

  • Foward/Side/Reverse Parking Collision-Avoidance Assist (PCA)*

  • Remote Smart Parking Assist 2 (RSPA 2)*

The rear ultrasonic sensors help the Kia EV6 detect obstacles behind the vehicle during reversing and parking operations.
