Kia EV6: Controls and features / Switching between panels

Contents:

• Automatic heating and air conditioning (A/C) operation
• Manual heating and air conditioning (A/C) operation

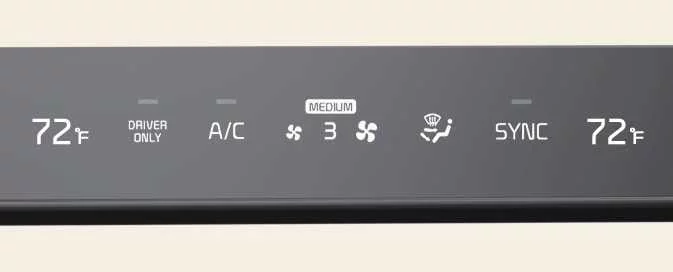

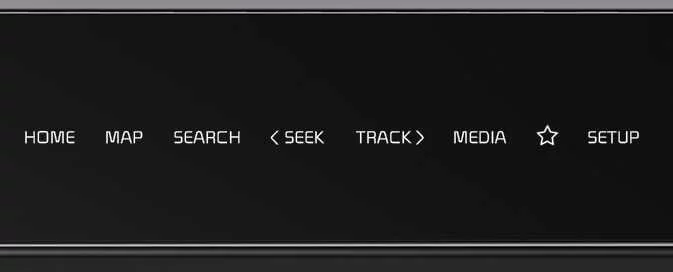

Press the switchable controller button to choose the desired Kia EV6 control panel mode.

The selected control panel icon appears on the display and the panel changes accordingly.

• The knob display changes automatically according to the selected Kia EV6 control panel mode.

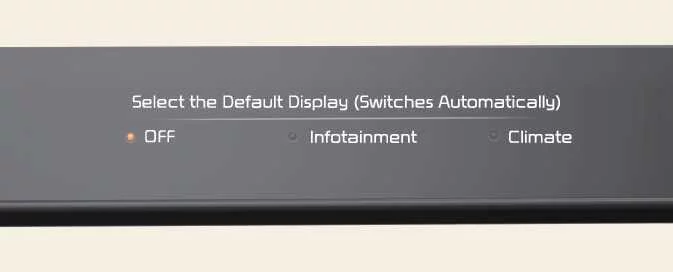

Setting the default mode

Press and hold the button to select the Kia EV6 controller’s default operating mode.

• After configuration, the control panel automatically returns to the selected default mode after a short period, even if another mode was temporarily selected.

• If the default mode is set to OFF, the Kia EV6 control panel displays the most recently used mode.

Automatic heating and air conditioning (A/C) operation

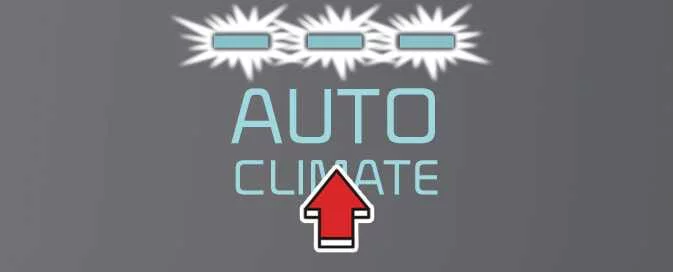

1. Press the AUTO button.

   The Kia EV6 climate system automatically controls air flow modes, fan speed, air intake selection, and air conditioning operation according to the selected temperature setting.

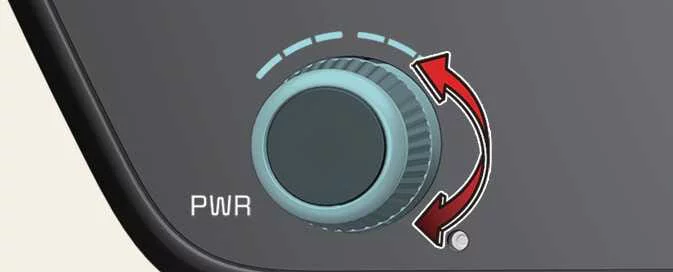

2. Turn the Kia EV6 temperature control knob to the desired cabin temperature.

• To deactivate Kia EV6 automatic climate operation, select any of the following buttons or controls manually:

  • Mode selection button

  • Air conditioning button

  • Front windshield defroster button (press the button once more to deactivate the windshield defroster function. The AUTO indicator appears again on the display.)

  • Air intake control button

  • Fan speed control switch

    The selected Kia EV6 function operates manually, while all remaining climate functions continue operating automatically.

• For maximum Kia EV6 climate control efficiency and passenger comfort, use the AUTO mode and set the cabin temperature to approximately 72 °F (22 °C).

Level	Indicator	LCD Display	Air flow
High			2–8
Medium			1–6
Low			1–4

NOTE

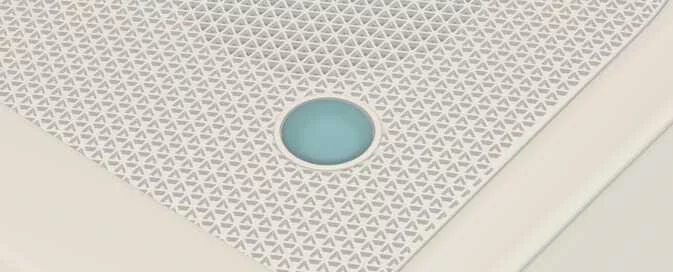

Do not place objects over the Kia EV6 climate control sensor located on the instrument panel. Blocking the sensor may reduce automatic heating and cooling performance.

Manual heating and air conditioning (A/C) operation ➤
